Full Automatic PCB exposure machine
Your Professional UV exposure machine Manufacturer in China Since 2011

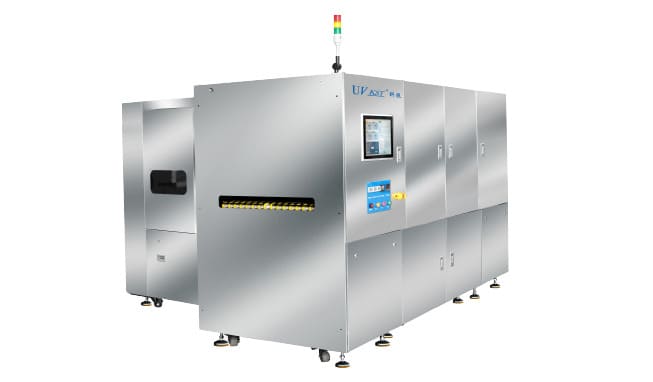

Full Automatic UV LED Exposure Machine
KST-AEM6457-NX
Full Automatic Inner Layer Exposure System
- For Inner Layer, Dry film
- 12‘’×10~21.5‘’×24.5‘’/12‘’×10‘’~24.5‘’×28.5‘’(Increase)
- High Resolution Line / Space 50um/2mil
- High Throughput Cycle Time = 8s + Exposure Time
- Alignment Precision 3σ≤ 10μm
- LED Light Instant ON/OFF, Reduce Energy Costs. (Lift time better than Mercury UV LAMP)
KST-AEM6457-WX
Full Automatic Inner Layer Exposure System
- For Outer Layer, Dry film
- 12‘’×10~21.5‘’×24.5‘’/12‘’×10‘’~24.5‘’×28.5‘’(Increase)
- High Resolution Line / Space 50um/2mil
- High Throughput Cycle Time = 8s + Exposure Time
- Alignment Precision 3σ≤ 10μm
- LED Light Instant ON/OFF, Reduce Energy Costs. (Lift time better than Mercury UV LAMP)
KST-AEM6254-FH
Full Automatic Solder Mask Exposure System
- For Solder Mask All colors Ink
- 12‘’×10~21.5‘’×24.5‘’/12‘’×10‘’~24.5‘’×28.5‘’(Increase)
- Green Ink bridge/Opening window:75um/3mil
- High Throughput Cycle Time = 8s + Exposure Time
- Alignment Precision 3σ≤ 10μm
- LED Light Instant ON/OFF, Reduce Energy Costs. (Lift time better than Mercury UV LAMP)
Machines In Customer Factory
PCB Accuracy Reach 50um/2mil
Circuit Resolution
Solder Mask BGA
Solder Mask Opening/Bridge
Demo Video for the Automatic UV Exposure Machine
Buy UV LED exposure machine, You save money in many ways!
- Less energy required and very short exposure times. Saving your money on utility cost.
- Less money for bulbs. Saving your money in maintenance cost .
- Less heat generated during operation. Saving your money in facility cooling cost.
- Less down time due to bulb issues. Saving your money and stress.
- less scrap rate in the process of the production. Saving your money and improve the production efficiency.
KST Production Workshop
Why Choose KST UV Exposure machine?
- Small Footprint
Simple structure, occupying less space for more equipment.
- Widely use
Widely use in PCB production and etching production.
- Energy Saving
All the light source are LEDs, super energy saving.
- Cost-effective
LED Light sources are long services life >20,000 hours. Saving your money in maintenance cost .
- Easy To Fix
Due to simple structure. All the parts are easy to remove and replace.
- Low Labor Cost
It can run regularly, Alignment by CCD camera, one worker run with two working tables, easy to operate and low labor cost.
