Auto Alignment UV exposure machine Supplier
Caresolutions on OEM&ODM auto alignment UV exposure machine for PCB production
Auto Alignment Machine Works for PCB outer layer and Solder Mask
Auto Alignment UV Exposure Machine Improve Your PCB Production Accurancy

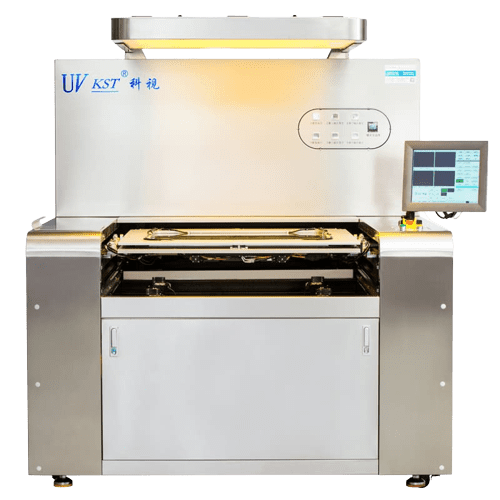

KST-SA6254-WX
Auto Alignment Outer Layer UV exposure machine
- For Inner/Outer Layer, Dry film/Wet film
- Double sided exposed
- 10''×12''~21''×24''(Standard)/24''×28''(Increase)
- High Resolution Line/Space 50μm/2mil
- Alignment Precision 3σ≤ 20μm
- High Throughput 900~1000panels/pre-shift(12Hrs)
- Servo Transfer for Daul Trays
- LED Light Instant ON/OFF, Reduce Engergy Costs.(Lift time better than Mercury UV-LAMP
- 4 Individual-axis camera
- Multiple Wavelength collimated UV LED

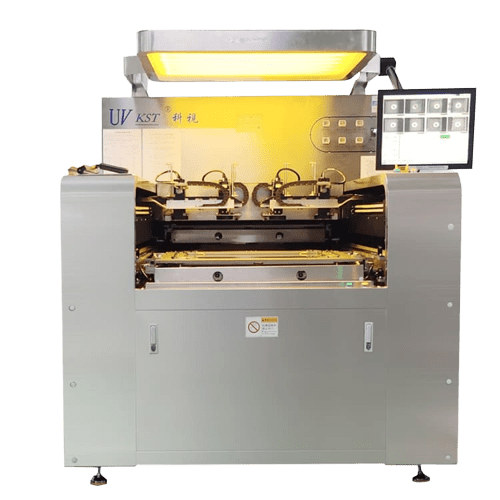

KST-SA6457-TFH
Auto Alignment Outer Layer UV exposure machine
- For Solder Mask, PSR, all different Colors Ink
- Double sided exposed at the same time.
- 10''×12''~21''×24''(Standard)/24''×28''(Increase)
- Very high energy, shorter exposure time, green ink 5 seconds.
- Alignment Precision 3σ≤ 20μm
- High Throughput 900~1000panels/pre-shift(12Hrs)
- Servo Transfer for Daul Trays
- LED Light Instant ON/OFF, Reduce Engergy Costs.(Lift time better than Mercury UV LAMP
- 8 Individual-axis camera
- Multiple Wavelength collimated UV LED

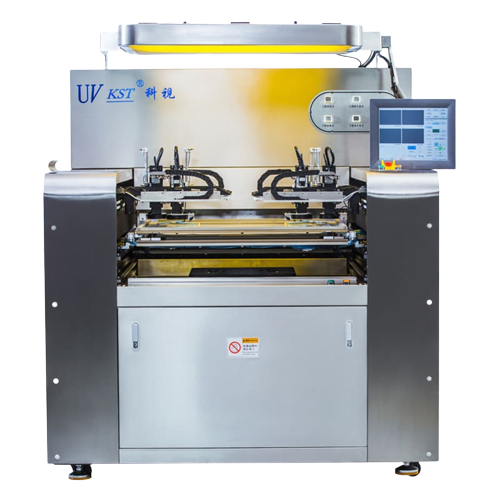

KST-SA6457-FH
Auto Alignment Outer Layer UV exposure machine
- For Solder Mask, PSR, all different Colors Ink
- Single side exposed.
- 10''×12''~21''×24''(Standard)/24''×28''(Increase)
- Very high energy, shorter exposure time, green ink 5 seconds.
- Alignment Precision 3σ≤ 20μm
- High Throughput 900~1000panels/pre-shift(12Hrs)
- Servo Transfer for Daul Trays
- LED Light Instant ON/OFF, Reduce Engergy Costs.(Lift time better than Mercury UV LAMP
- 4 Individual-axis camera
- Multiple Wavelength collimated UV LED

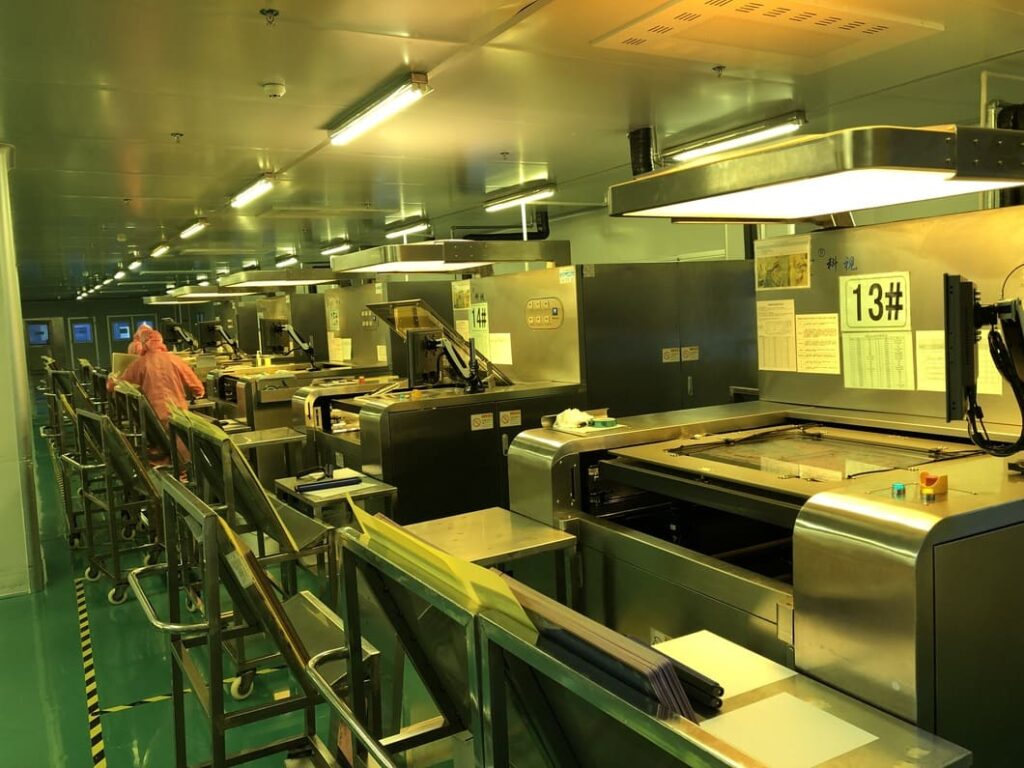

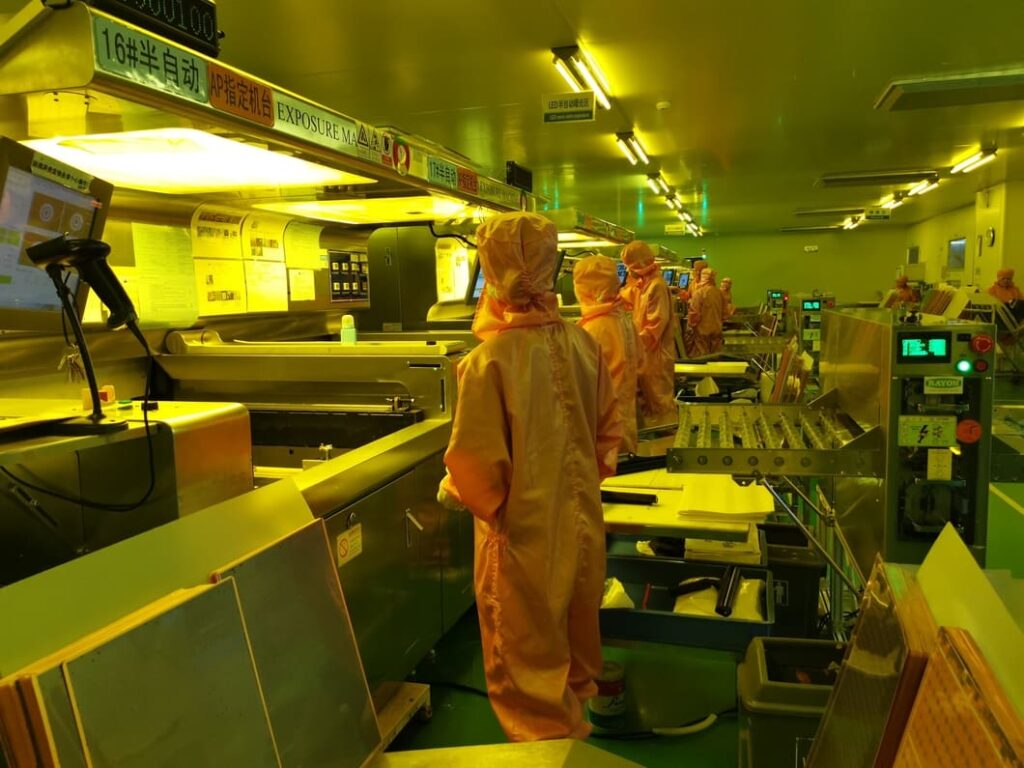

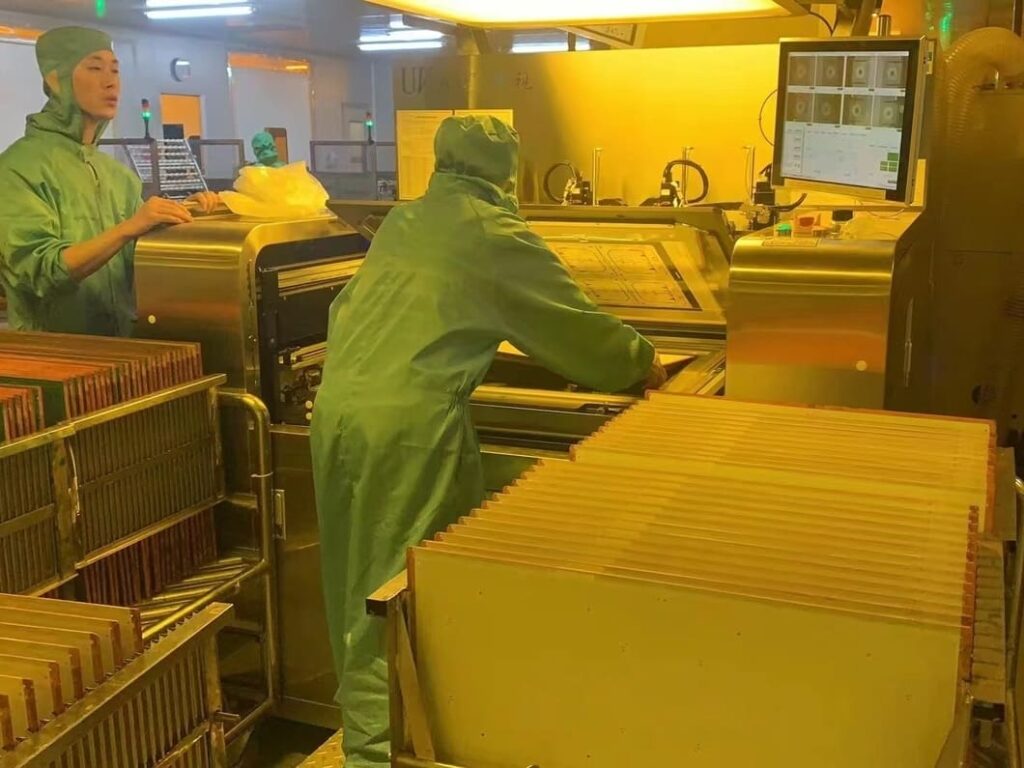

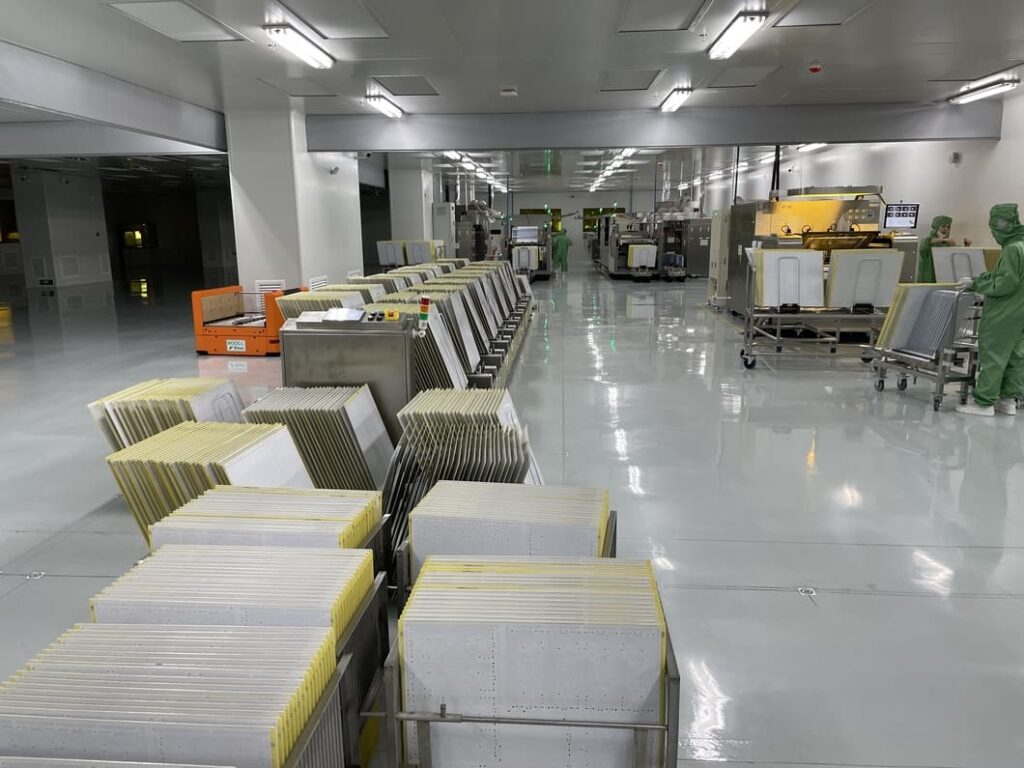

KST machines in Customer's Factory
PCB Accuracy Reach 50um/2mil

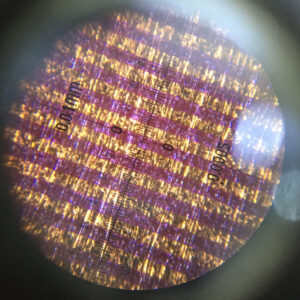

Outer Layer Line Width/Space

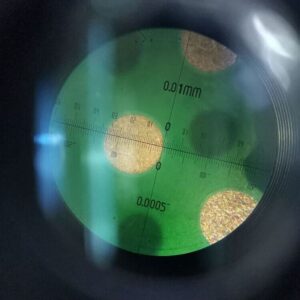

Solder Mask Opening/Bridge

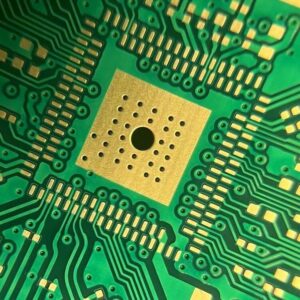

Solder Mask Opening
Demo Video for the Auto Alignment Machine
KST Machines are widely used all around the world. Which is table and energy Saving, with lifelong Service, easy operate, and long service life.
Outer/Inner Layer
Solder Mask/PSR
Buy UV LED exposure machine, You save money in many ways!
- Less energy required and very short exposure times. Saving your money on utility cost.
- Less money for bulbs. Saving your money in maintenance cost .
- Less heat generated during operation. Saving your money in facility cooling cost.
- Less down time due to bulb issues. Saving your money and stress.
- less scrap rate in the process of the production. Saving your money and improve the production efficiency.

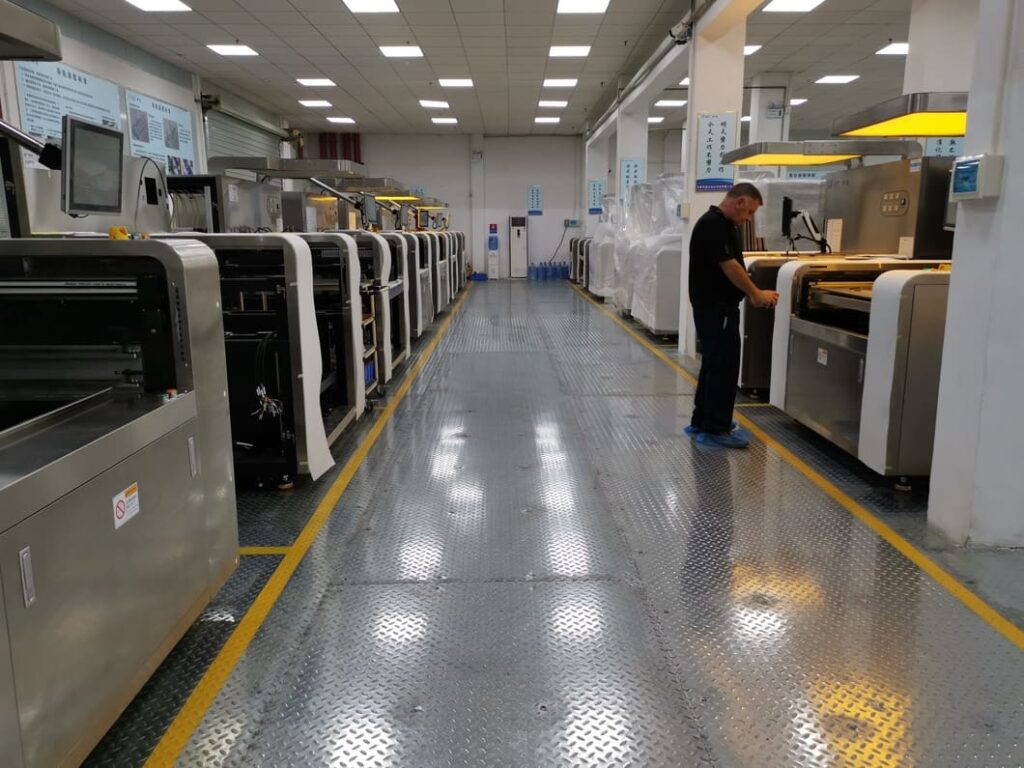

KST Production Workshop
Why Choose KST UV Exposure machine?
- Small Footprint
Simple structure, occupying less space for more equipment.
- Widely use
Widely use in PCB production and etching production.
- Energy Saving
All the light source are LEDs, super energy saving.
- Cost-effective
LED Light sources are long services life >20,000 hours. Saving your money in maintenance cost .
- Easy To Fix
Due to simple structure. All the parts are easy to remove and replace.
- Low Labor Cost
It can run regularly, Alignment by CCD camera, one worker run with two working tables, easy to operate and low labor cost.
